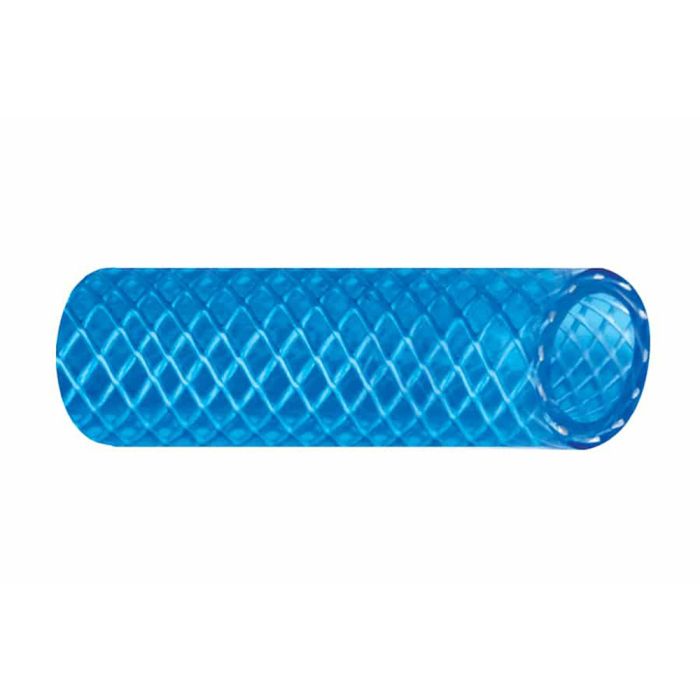

Trident Marine 1/2" Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - Sold by the Foot

1/2" Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue - Sold by the Foot

Trident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on i.d size).

Features:

• Sold by the foot
• The Blue cover allows for easy identification of "Cold Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

• Tube & Cover: Clear FDA tube
• Color: Blue Transparent
• Reinforcement: Polyester
• Temperature Range: -18°F to 149°F (-28°C to 65°C)

Specifications:

• Inner Diameter: (inch) 1/2" / (mm) 12.7
• Outer Diameter: (inch) .777 / (mm) 19.6
• Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17
• Bend Radius: (inch) 0.98" / (mm) 25

*Burst Pressure is 4 x Working Pressure



Additional Specs (If Applicable):

• ID Diameter (inches) = 1/2"
