Echonautics BT87H1kW-00 1kW 130-210kHz High CHIRP 0d Tilted Element Bronze TH
$716.67
In stock
SKU
ECHBT87H1KW00
Echonautics BT87H1kW-00 1kW 130-210kHz High CHIRP 0d Tilted Element Bronze TH

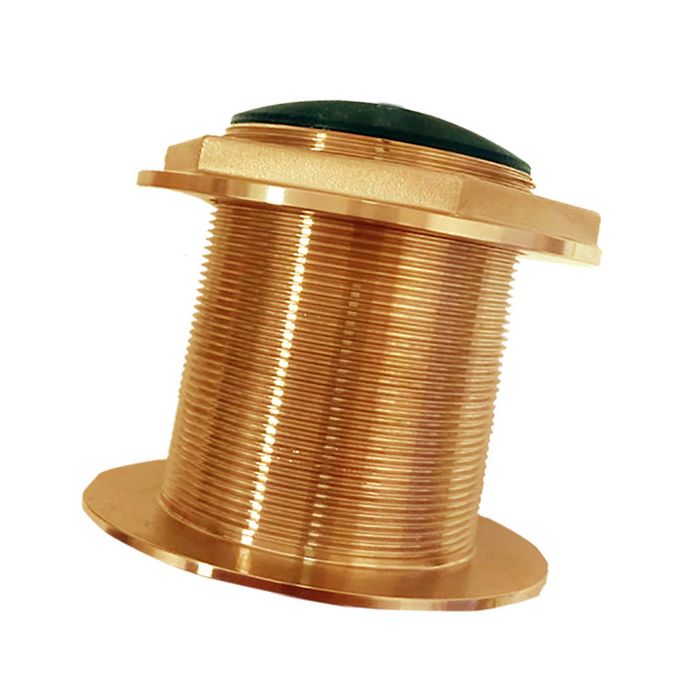

Echonautics BT87H1KW 130-210kHz 1kW High CHIRP 0° Tilted Element
Model: BT87H1KW-00- Superior shallow-water performance and bottom detail
The Echonautics BT87H1kW is a low-profile thru hull CHIRP transducer designed to minimize drag and to perform at high speeds.
Thanks to the narrow beamwidth, it is excellent for pinpointing fish holding tight to reefs, wrecks, and other structures.
Specifications| Function | Depth and Temperature |
| Frequency | CHIRP 130 - 210 kHz |
| Tilt/deadrise | 0° tilted version: for 0° to 7° hull deadrise |
| Material | Bronze |
| RMS Power | 1 kW |
| Beamwidth | 13° to 8° @-3db |
| Depth | Max 304 m (1,000 ft) |
| Temp. sensor | NTC |
| Acoustic window | Urethane |
| Cable length | 9 m (30 ft) |
| Hole diameter | 87.6 mm (3.45") |
| MFG Part Number | BT87H1kW-00 |
|---|---|
| upc | 010407340128 |
