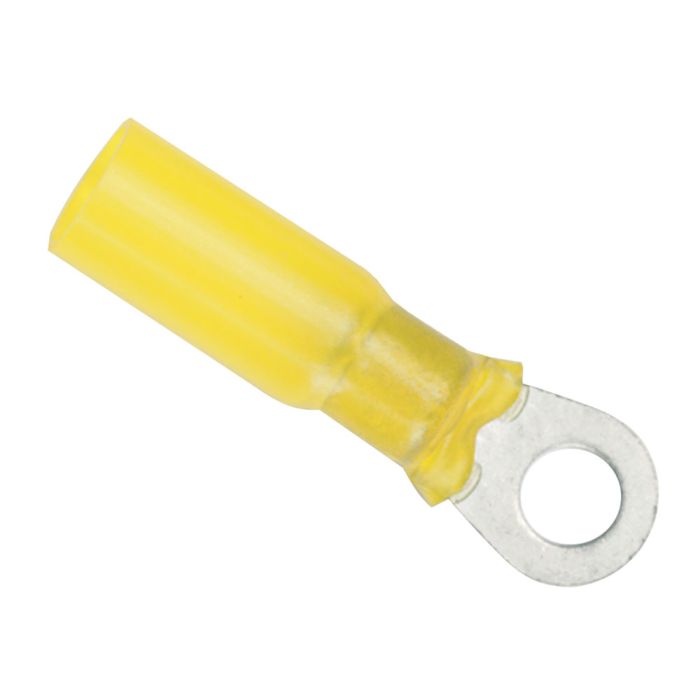

Ancor 12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack

$4.30
In stock
SKU
55440
Ancor 12-10 5/16" Heatshrink Ring Terminal 3Pk
12-10 Gauge - 5/16" Heat Shrink Ring Terminal - 3-Pack

Gauge Size: 12-10
Screw Size: 5/16"
Quantity: 3

Product Features:
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
  • Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257° F/125° C
  • Operating temperature range 40° C to 110° C
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief
  • Tinned for corrosion resistance
  • Pure copper for maximum current flow
  • Brazed seam for maximum strength

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



Additional Specs (If Applicable):

  • Gauge = 12-10 AWG
  • Type = Ring Terminals
  • Post Size = 5/16"
  • Package Qty = 3
  • Heat Shrink = Yes
More Information
MFG Part Number 312503
upc 091887316148
